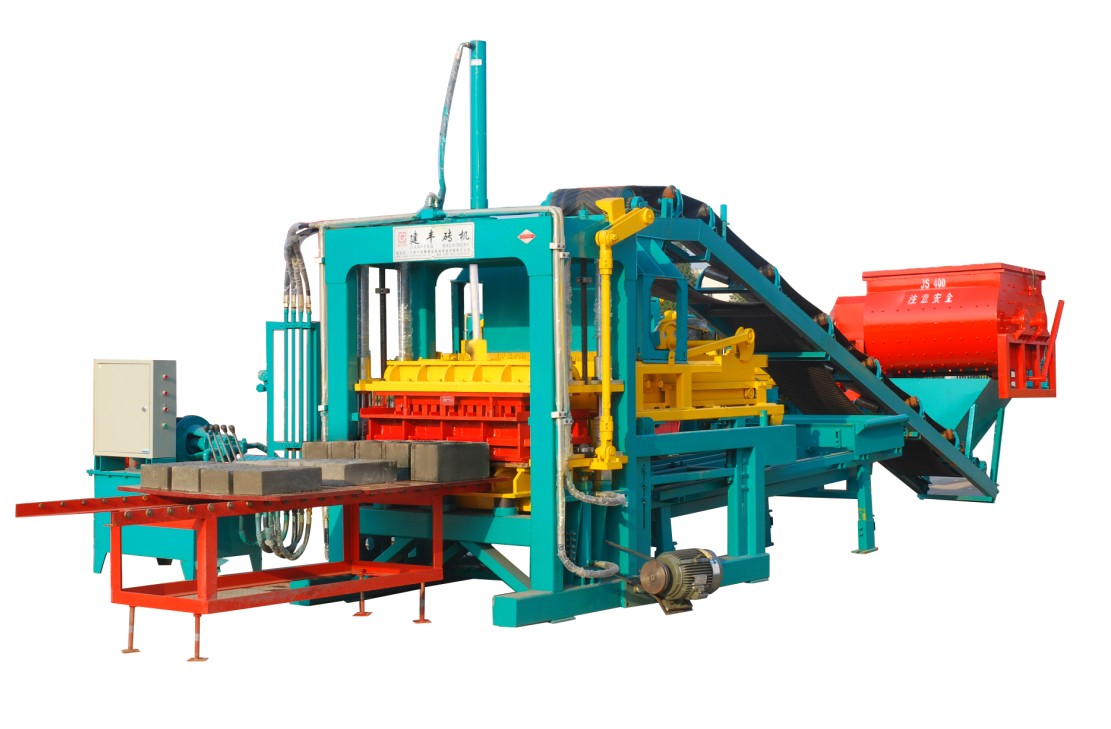

Hydraulic Brick Machine JPM-02

Product Name: Hydraulic Brick Machine JPM-02
Model NO.: JPM-02

Product Details: Hydraulic Brick Machine JPM-02

Features
1. This machine is upgrated,18 pieces of bread brick can be pressed for each mould, productivity is improved greatly, costs is reduced.
2. And arbitrary mould replacement, realizes the diversification of machine.
3. four-column guide, patent lengthened guide sleeve, the structure is more firm and durable.
4. complete auxiliary equipments, so as to improve the mechanization and save manpower resources greatly.
5. and forced synchronous mould structure, ensure same product thickness, stable demolding and high yield.
6. Realize automation of plates’ coming in & out, aggregates, shock and pressing.

Main technical parameter

Product specification (LWH)(mm)	Model number	Per hour yield	Produce period
Standard brick 24011553(mm)	32 Piece	5760 Piece	20 Second/Time
Hollow brick 150200400(mm)	5 Piece	900 Piece	20 Second/Time
S brick 24310680(mm)	16 Piece	2880 Piece	20 Second/Time
Bread brick 1989860(mm)	18 piece	3240 Piece	20 Second/Time
Multihole brick 24011590(mm)	16 Piece	2880 Piece	20 Second/Time
Border brick 1000150300(mm)	1 Piece	90 Piece	40 Second/Time

Ordinal number	Ltem	Parameter
1	Actuating shock force	68KN
2	Frequency of shock	6500Time/Minute
3	Amplitude	15mm
4	Noice	95ab(A)
5	Shock time	5Second/Time
6	Overall dimension	160026002100
7	Install captatity	24.2KW
8	Weight of complete machine	7.5T
9	Maximum pressure	10T
10	Give plant size	110058020(mm)
11	Operation mumber	10Person
12	Use a grould of area	≥4000m²
