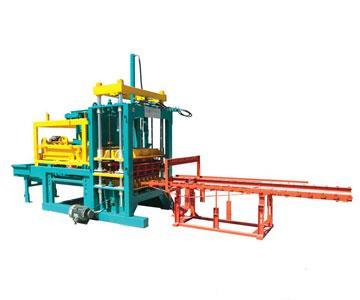

Hydraulic Brick Machine JPM-01

Product Name: Hydraulic Brick Machine JPM-01
Model NO.: JPM-01

Product Details: Hydraulic Brick Machine JPM-01

Main technical parameter

序号No.	项目Item	名称Parameter
1	激震力Shock force	68千牛KN
2	振动频率Frequency	6500次/分(Time/Min)
3	振幅Amplitude	15mm
4	噪音Noise	95db(A)
5	震动时间Shock time	5秒/次(Second/Time)
6	外形尺寸Overall dimension	1600×2600×2400(mm)
7	装机容量Power	24.2KW
8	整机重量Weight	7.5吨(T)
9	最大压力Max pressure	10T
10	托板尺寸Pallet size	1100×570×20(mm)
11	操作人数Worker	10人 (person)
12	用地面积Land	≥4000 m²

Capacity:

Product specification (L×W×H)

Production Per Cycle

Production Per Hour

Time Per Cycle

225*112.5*60/80(mm)

Interlock brick(S shape)

Pieces/Cycle

2880

Pieces/Hour

Seconds/Cycle

200*100*60/80(mm)

Holland brick

Pieces

3240

Pieces

Seconds

240*115*53(mm)

Standard brick

Pieces

5760

Pieces

Seconds

390*190*190(mm)

Hollow block

Pieces

900

Pieces

Seconds

240*115*90(mm)

Multi-hole block

Pieces

2880

Pieces

Seconds

1000*150*300(mm)

Curbstone

Piece

Pieces

Seconds

Features:

1. 18 pieces Holland brick can be made per time, higher production than old models and cost saving. Surface feeding machine automatically feeds the color surface of paving bricks.

2. Concrete blocks and bricks within 1000*500 mm (L*W/H) can be made by changing different moulds, with one machine.

3. Our patented long guiding sleeves with four high quality guiding pillars are creating a stronger and better structure.

4. Automatic operation for pallet feeding, aggregating, vibrating, pressing and brick receiving, and several matched equipments are for customer’ s choose to save more labor force.

5. High density steel for machine frame, advanced heat treatment for spare parts and moulds, make sure the high quality of machine and improve the using lifetime.

6. Easier for operating, maintenance and changing parts, which makes machine working all year round without wasting time on maintenance.
